What improved?
A steady source of turning power could drive workshop machinery.
THE ENGINE ROOM / 01
Small parts. Big discoveries.
A little steam. A clever machine. Let’s see what makes it move.
ON THE WORKBENCHHorizontal · Single cylinderVictorian era · 1837–1901
Explore the steam history timeline
3D MODEL
Meet a Victorian powerhouse.A representative engine from the age of steam.
Drag to turn · Scroll or pinch to zoom · Right-drag or two-finger drag to panTap a part to discover it
Ready when you are
FROM THE HISTORICAL RECORD · Victorian era · 1837–1901
THE ENGINE’S STORYPower for the workshop
A steam engine could power a whole workshop. Steam pushes a piston back and forth inside the cylinder. A crank turns that push into a spinning shaft. Belts carried the turning power to machines that cut, drilled or made things.
Original, replica or teaching model?
This is a representative design, so it has no single surviving original. The gallery shows a period illustration of a related engine.
How did life change?
Power-driven production changed the pace and organisation of work. Factory workers also faced noise, long hours and dangerous machinery.
In the archive
Select a photograph to look closer. Captions distinguish originals, replicas and related examples.

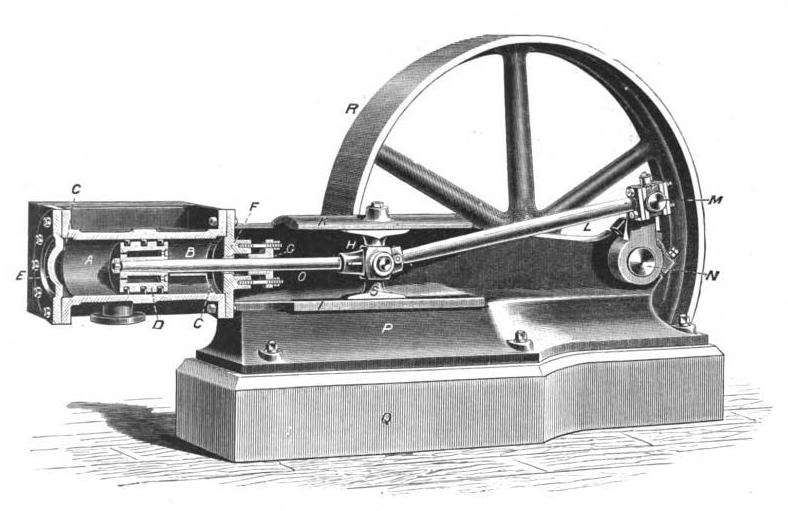

A horizontal steam engine in an 1899 engineering book.
John Perry, The Steam Engine and Gas and Oil Engines (1899) · Public domainArchive record ↗
YOUR NEXT DISCOVERY
Look closer. Have a go. Find out.Think like an engineer.
Keep the workshop turning
A flywheel stores energy. Add a steam push, then let the workshop use that energy. Keep it moving for six working strokes.
Finish six working strokes. A steam push adds 25 energy units. Each working stroke uses 15. Keep at least 15 units for the next stroke, without filling above 100.
Completed: 0 / 6 working strokes
No timer. Try as often as you like. These puzzles explain ideas; they are not instructions for operating a real engine.
